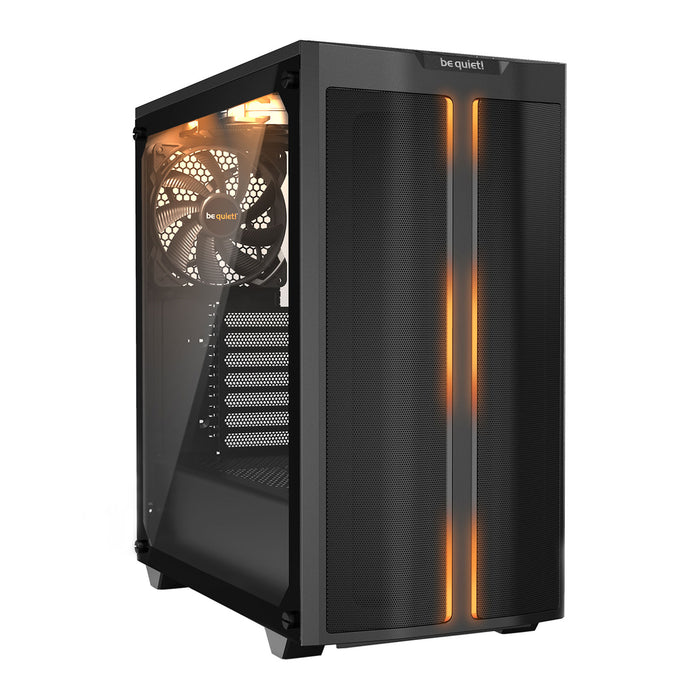

Elevate your build with the Be Quiet! Pure Base 500DX, a case that combines superior airflow, near-silent operation, and elegant ARGB lighting for enthusiasts seeking performance and style.
| Category |
Specification |
Value |
| General Data |
Model |
Pure Base 500DX | Black |
| PSU Form Factor |
ATX PS/2 |
| Motherboard Compatibility |
ATX, M-ATX, Mini-ITX |

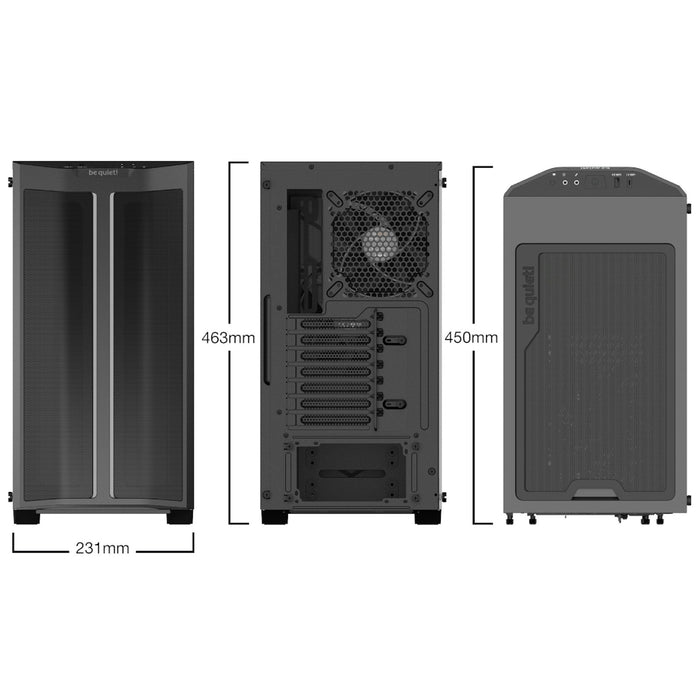

| Case Size excl. Stands (L x W x H, mm) |
450 x 232 x 443 |
| Case Size incl. Stands (L x W x H, mm) |
450 x 232 x 463 |
| Side Panel Window (L x W, mm) |
400 x 431.3 |
| Color Option |
Black |
| Weight (kg) |
7.8 |
| USB 3.0 |
1 |
| USB 3.1 Gen 2 Type C |
1 |
| HD Audio I/O |
Mic + Audio |
| Expansion Slots |
7 |
| Fan Mounting Locations |
6 |
| Qi Charger / Quick Charging |
- |
| Backplate Motherboard Installation |
Yes |
| Material |
Top Cover |
ABS |
| Side Panel |
Steel |
| Side Panel Window |
Tempered Glass 4mm |
| Front Panel |
ABS |
| Stands |
ABS |
| Drive Bay Capacity |
5.25 Bays |
- |
| 3.5 Slots (Max.) |
2 |
| 3.5 Slots (Included) |
2 |
| 2.5 Slots (Max.) |
5 |
| 2.5 Slots (Included) |
5 |
| Pre-installed Fans |
Fan @ Front |
1x be quiet! Pure Wings 2 | 140mm |
| Fan @ Rear |
1x be quiet! Pure Wings 2 | 140mm |
| Fan @ Top |
1x be quiet! Pure Wings 2 | 140mm |
| Dimensions (L x W x H, mm) |
140 x 140 x 25 |
| Fan Speed @ 100% PWM / 12V (rpm) |
900 |
| Noise Level @ 100% PWM / 12V (dB(A)) |
17.10 |
| Airflow @ 100% PWM / 12V (cfm / m3/h) |
55.8 / 94.8 |
| Air Pressure @ 100% PWM / 12V (mm H2O) |
0.6 |
| Voltage Range (V DC) |
12 |
| Input Power (W) |
1.08 |
| Input Current (A) |
0.09 |
| Connector |
3-Pin |
| Lifespan (h / 25°C) |
80,000 |
| Optional Fan Installation |
Front (mm) |
1 x 140 | 3 x 120 |
| Top (mm) |
1 x 140 | 1 x 120 |
| Bottom (mm) |
- |
| Side Panel (mm) |
- |
| PSU Shroud |
- |
| Optional Radiator Installation |
Front (mm) |
120, 140, 240, 280, 360 |
| Top (mm) |
120, 140 |
| Rear (mm) |
120 / 140 |
| Bottom (mm) |
- |
| Cooling |
Max. CPU Cooler Height (mm) |
190 |
| Airflow Channel |
Front, Top, Rear |
| Lighting |
RGB LED Illumination |
Front LED ARGB, Internal ARGB |
| LEDs Synchronizable with RGB Controller/Motherboard |
- |
| Expandable RGB Controller |
- |
| PSU Compatibility |
Max. Dimensions excl. Bottom Fan (mm) |
258 |
| Max. Dimensions incl. Bottom Fan (mm) |
225 |
| Graphics Card |
HDD Cage Installed (mm) |
369 |
| HDD Cage Removed (mm) |
369 |
| Insulation and Damping |
Top Panel Insulation Mats |
- |
| Front Panel Insulation Mats |
- |
| Side Panel Insulation Mats |
Yes |
| Anti-vibration Decoupled HDD |
Yes |
| Anti-vibration Decoupled Fan |
- |
| Anti-vibration Decoupled PSU |
Yes |
| Anti-vibration Decoupled Motherboard Tray |
- |
| Removable Dust Filters |
Front |
1 |
| Bottom |
1 |
| Side Panel |
1 |
