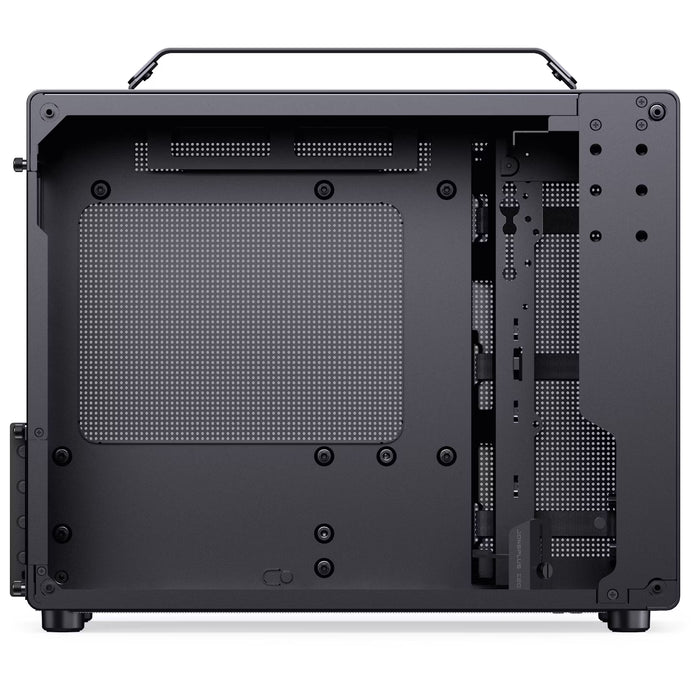

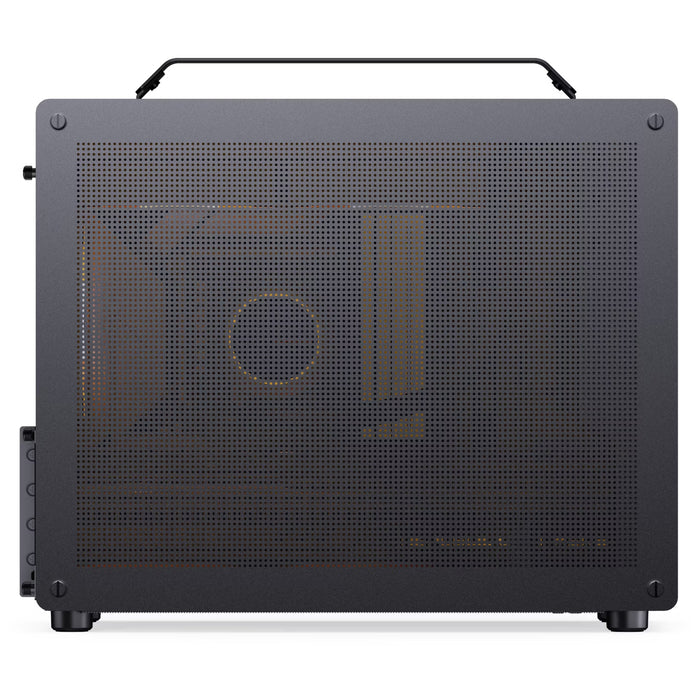

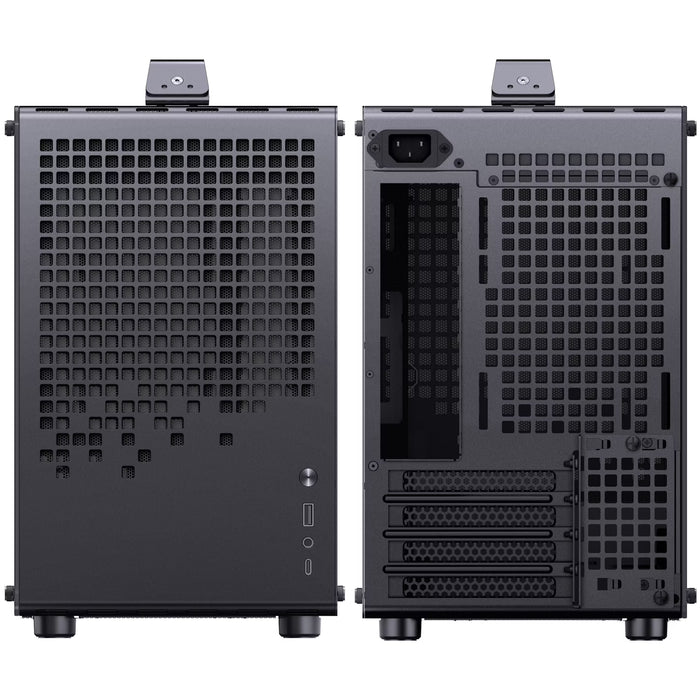

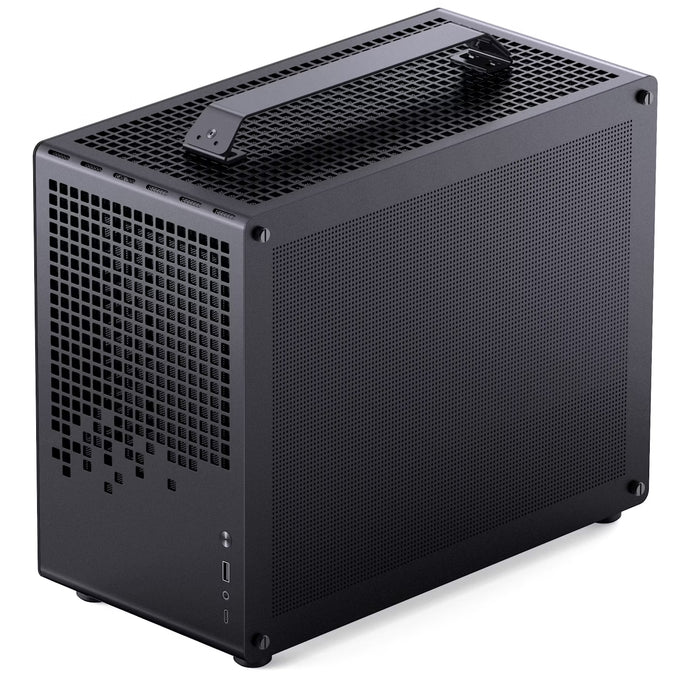

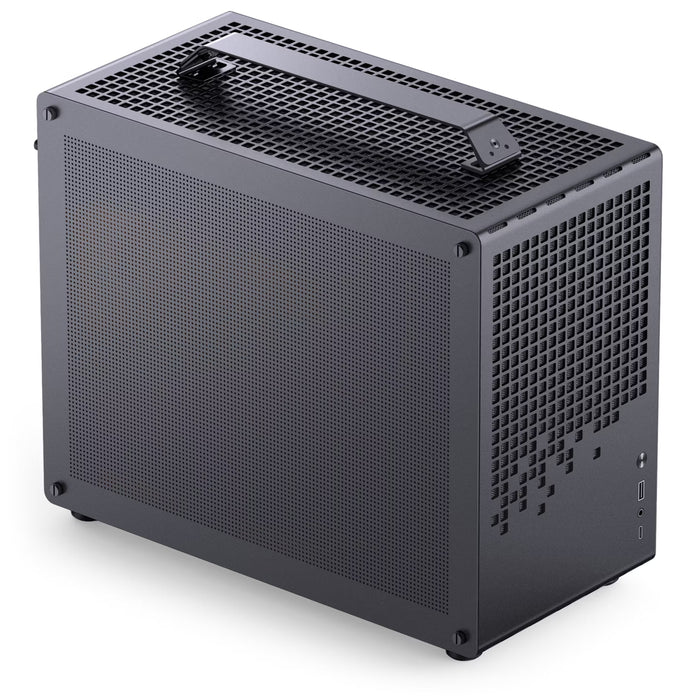

Jonsplus Z20 Mesh Black Micro-ATX PC Case

Jonsplus Z20 Mesh Black Micro-ATX PC Case

SKU: Z20 MESH BLACK
Availability:
Out of stock
Out of Stock
€101,95
€101,95 - €101,95
€101,95 - €101,95
€101,95
Inc-VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot
Model Name Z20 Black V1.0
Dimensions (w/o handle/feet) 370mm (D) × 186mm (W) × 295mm (H)
Dimensions (with handle/feet) 382mm (D) × 198mm (W) × 335mm (H)
Motherboard Support Mini-ITX / Micro-ATX
Expansion Slots 4
Case Material SPCC Steel, Tempered Glass
Weight N.W. 5kg / G.W. 6.5kg
CPU Air Cooler Clearance 164mm MAX (Intel) / 163mm MAX (AMD)
Radiator Clearance Top: up to 240mm
GPU Clearance Up to 363mm (depends on hardware configuration)
ATX PSU Clearance Up to 180mm (recommended ≤140mm, depends on hardware configuration)
SFX PSU Support SFX / SFX-L
Front I/O Ports USB 3.2 Gen 1 Type-A ×1
USB 3.2 Gen 2 Type-C ×1
Headset Audio Jack ×1
Drive Bays 2.5": up to 3 (depends on configuration)
3.5": up to 1 (depends on configuration)
Fan Support Top: 2 × 120mm / 2 × 140mm
Rear: 1 × 120mm / 1 × 92mm
Bottom: 2 × 120mm / 2 × 140mm (depends on configuration)
Mounting
Case VESA Mountable No
Internal Monitor Mount No
Internal Dimensions
Max. CPU Cooler Height 164 mm
Max. GPU Length 363 mm
Max. PSU Length / Depth 180 mm
Back Connect
Back Connect No
Colour
Primary Colour Black
Case Features
I/O position Front
Side panel with mesh
Vertical GPU Mount No
Adjustable Vertical GPU Bracket No
Riser Cable Included No
Front door No
Cable Management No
Filters Included No
Noise dampening No
Mainboard slide / tray No
Remote included No
Transport System Yes
Radiator Support
Max. Radiator Compatibility 1x Dual (240 mm)
Motherboard Support
Compatible Motherboard Formats Micro-ATX, Mini-ITX
Max. Motherboard Format Micro-ATX
Power Supply
PSU included No
PSU Format ATX, SFX-L, SFX
Power Supply Position front
Fan Support
Max. Number of Fans 5
92 mm fans 1
120 mm fans 5
140 mm fans 4
Case
Case Type Mini Case
Materials
Materials Steel
Features
Housing Feedthrough No
Additional Contents
Included fans None
Dimensions
Length / Depth 382 mm
Width 198 mm
Height 335 mm
Weight 6.5 kg
Display
Display Included No
Lighting
Lighting / RGB No
Expansion Slots
Expansion slots / PCI slots 4
Drive Bays
Max. 2.5 Inch Drives 3
Max. 3.5 Inch Drives 1
Max. 5.25 Inch Drives 0
2.5 inch internal drive bay 3
3.5 inch internal drive bay 1
Hot swap drive bays No
Fan Header
Fan Controller / Fan Hub No
External Ports
USB 3.1 (external) Type C 1
USB 3.0 (external) Type A 1
Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card reader No
