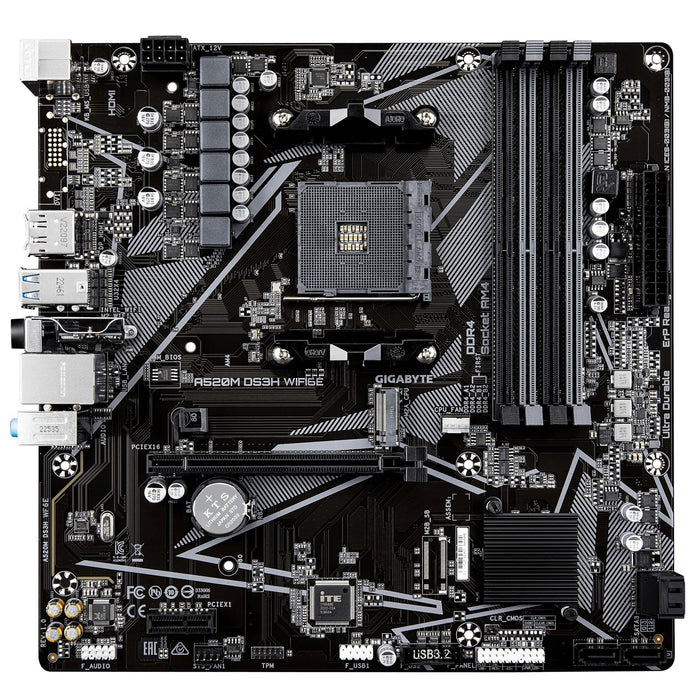

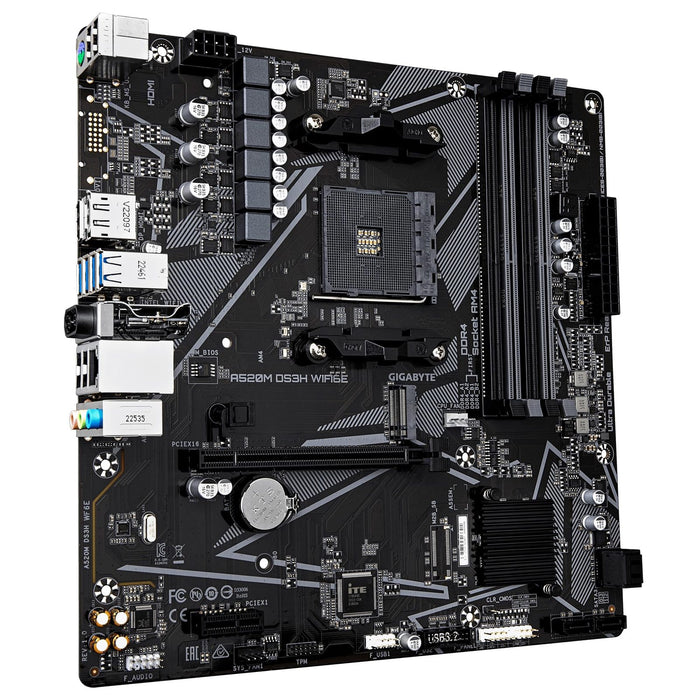

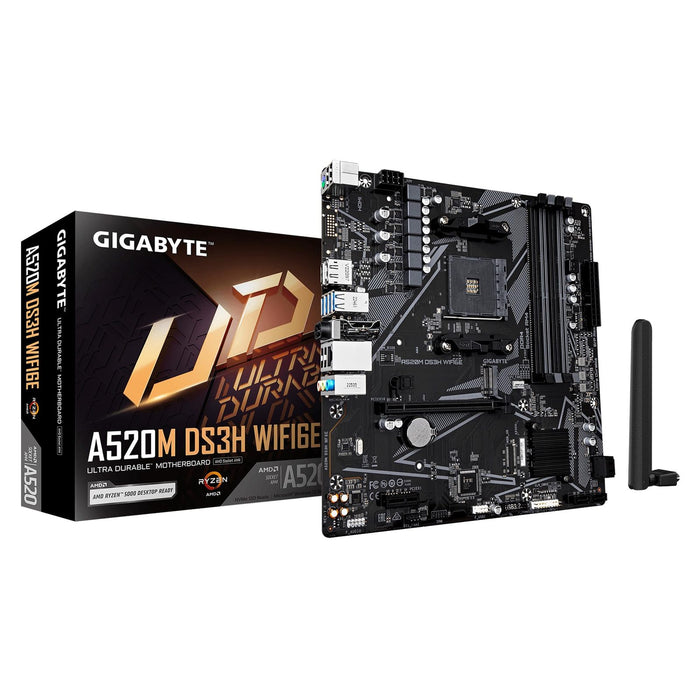

Gigabyte A520M DS3H WIFI6E Micro-ATX AM4 Motherboard

The GIGABYTE A520M DS3H WIFI6E is a Micro ATX motherboard built on the AMD A520 chipset for the AM4 socket. It provides a solid foundation for a mid-range desktop, supporting a wide range of AMD Ryzen processors from the 3000, 4000 G-Series, and 5000 series for everyday productivity, content creation, and gaming builds.

Key Features

• Processor Support: Designed for AMD Ryzen™ 5000/4000 G-Series/3000 series processors.
• Memory: Four DDR4 DIMM slots supporting up to 128GB of memory, with speeds up to 4733MHz (OC) and support for ECC and XMP profiles.
• High-Speed Networking: Integrated Realtek GbE LAN and a MediaTek Wi-Fi 6E module (802.11ax) for fast and reliable wired and wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands.
• Wireless & Bluetooth: Features Bluetooth 5.3 for connecting peripherals.
• Storage: One PCIe 3.0 x4 M.2 slot (supporting both SATA and NVMe SSDs) and four SATA 6Gb/s connectors with RAID 0, 1, and 10 support.

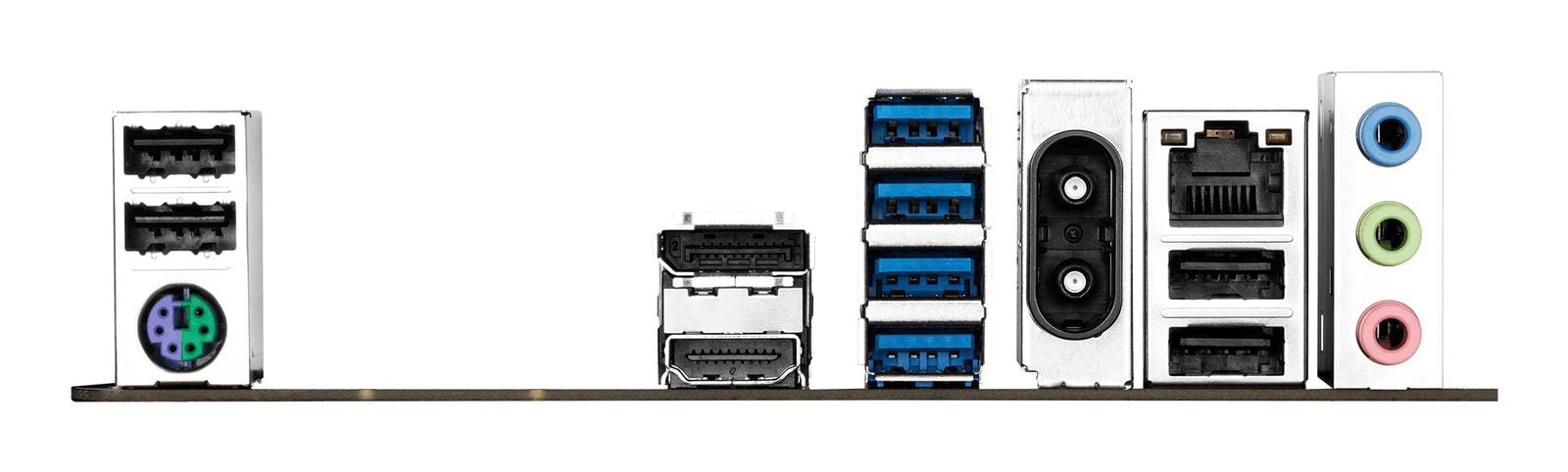

I/O & Connectivity

• Graphics Output: Includes one DisplayPort 1.4 (5120x2880@60Hz) and one HDMI 2.1 (4096x2160@60Hz) port for multi-display setups using a compatible CPU's integrated graphics.
• USB Ports: Provides a total of eight USB ports, including four USB 3.2 Gen 1 Type-A ports on the rear I/O panel.
• Audio: Equipped with a Realtek ALC897 audio codec for 7.1-channel high-definition audio.
• Additional Rear I/O: Includes a PS/2 keyboard/mouse port and antenna connectors for the Wi-Fi 6E module.
