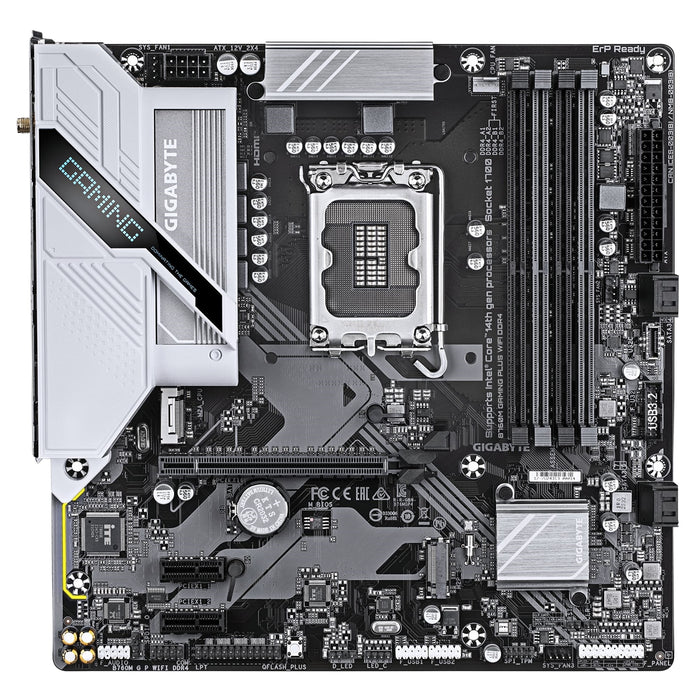

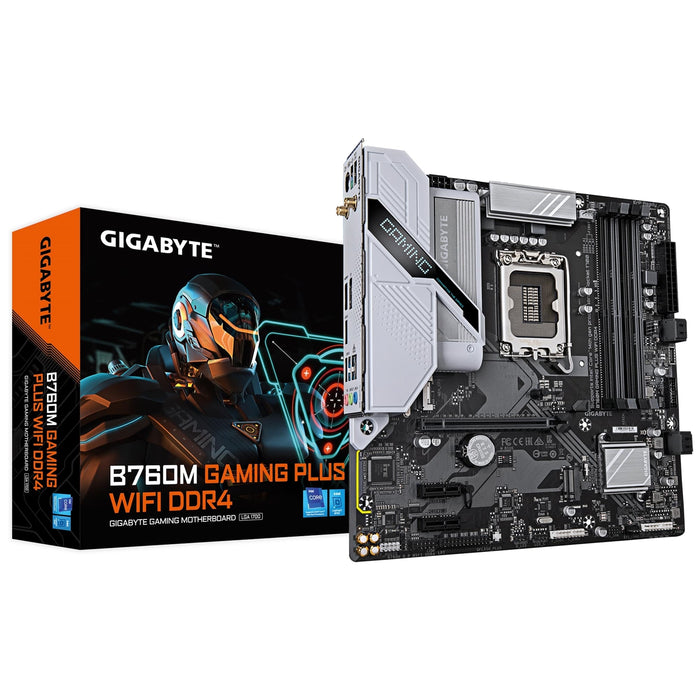

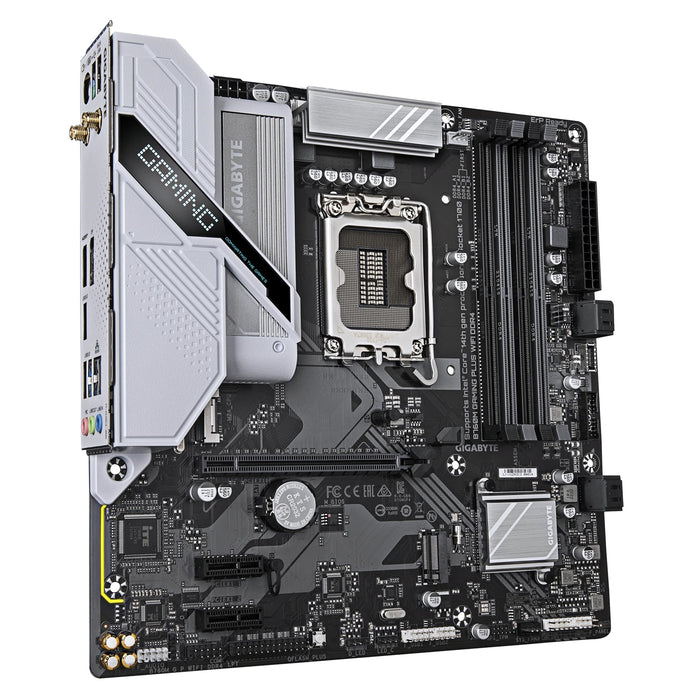

Gigabyte B760M GAMING PLUS WIFI DDR4 Micro-ATX LGA 1700 Motherboard

The Gigabyte B760M GAMING PLUS WIFI DDR4 is a Micro ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. It supports 12th, 13th, and 14th Gen Intel Core processors, making it a solid foundation for gaming or productivity builds.

Key Features

• Digital VRM Design: Hybrid 4+1+1 phase digital VRM for stable power delivery to the CPU.
• Memory Support: 4 DDR4 DIMM slots with XMP support up to 5333 MHz (OC), allowing a maximum capacity of 256 GB.
• Storage: Two M.2 PCIe 4.0 slots and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support.
• Networking: Integrated Wi-Fi 6 (802.11ax) and Realtek GbE LAN for reliable wired and wireless connections.
• BIOS Update: Q-Flash Plus enables BIOS updates without installing the CPU, memory, or graphics card.

I/O & Connectivity

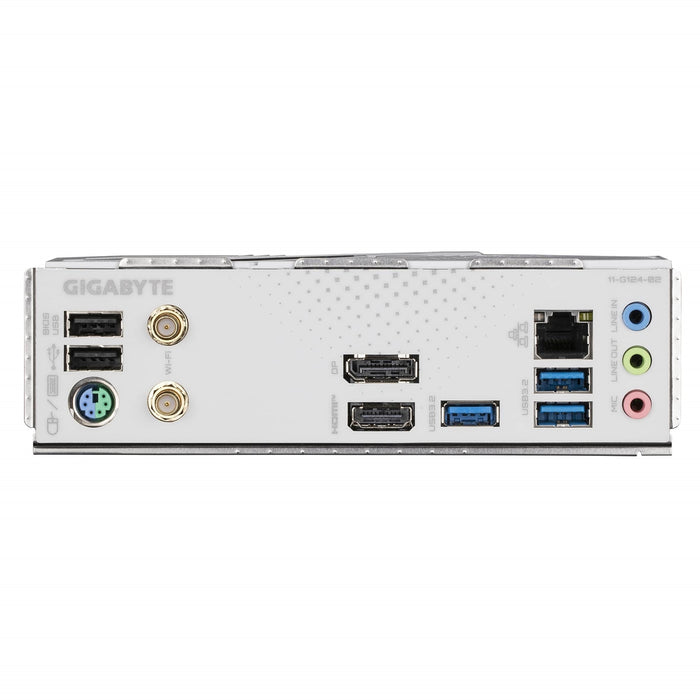

• Rear Ports: Includes 3x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI (4096x2160@60Hz), 1x DisplayPort (4096x2304@60Hz), 1x RJ-45 Ethernet, and 3x audio jacks.
• Wireless: Bluetooth 5.3 with 2x SMA antenna connectors for enhanced range and speed.
• Internal Connectivity: Features a front USB-C 5Gb/s header, USB 3.2 Gen 1 header, addressable RGB and RGB LED headers, and multiple fan headers for cooling.

Cooling & Build

• Smart Fan 6: Multiple temperature sensors and hybrid fan headers with FAN STOP functionality for efficient and quiet cooling.
• Thermal Design: Enlarged MOSFET heatsink for improved heat dissipation during extended use.
