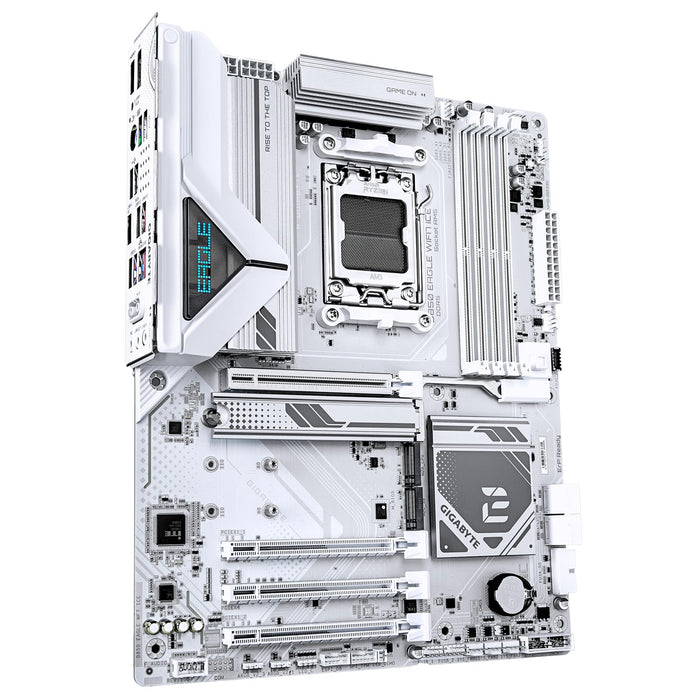

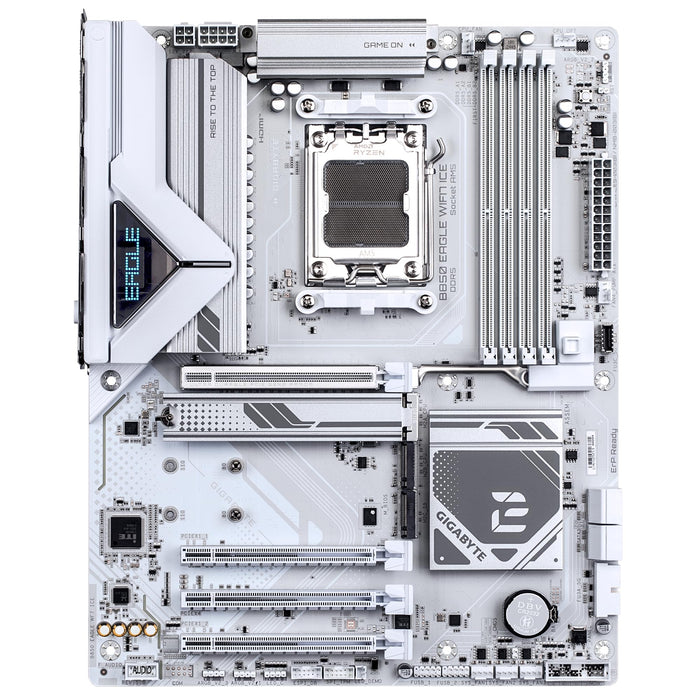

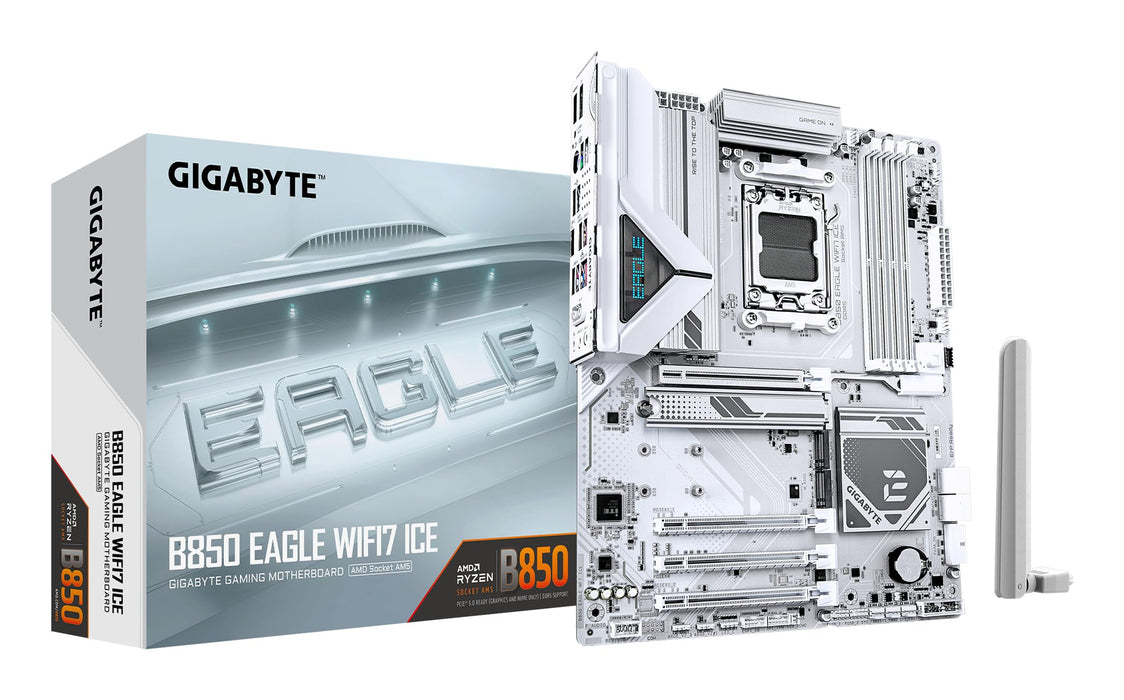

Gigabyte B850 EAGLE WIFI7 ICE ATX AM5 Motherboard

The GIGABYTE B850 EAGLE WIFI7 ICE is an ATX motherboard built on the AMD B850 chipset for Socket AM5, supporting AMD Ryzen 7000, 8000, and 9000 Series processors. It features a white colour scheme and is designed for gaming, productivity, and workstation builds.

Key Features

• VRM and Performance: 8+2+2 phases digital VRM for stable power delivery.
• Memory: DDR5 support up to 8200 MHz (OC) with 4 DIMM slots, dual-channel architecture, and AMD EXPO/XMP profiles.
• Expansion: 1x PCIe 5.0 x16 slot for graphics, plus additional PCIe 4.0 and 3.0 slots.
• Storage: 3x M.2 slots (including PCIe 5.0 x4) and 4x SATA connectors with RAID 0, 1, 10 support.
• Networking: Wi-Fi 7 (802.11be) with Realtek RTL8922AE controller and 2.5 GbE LAN.

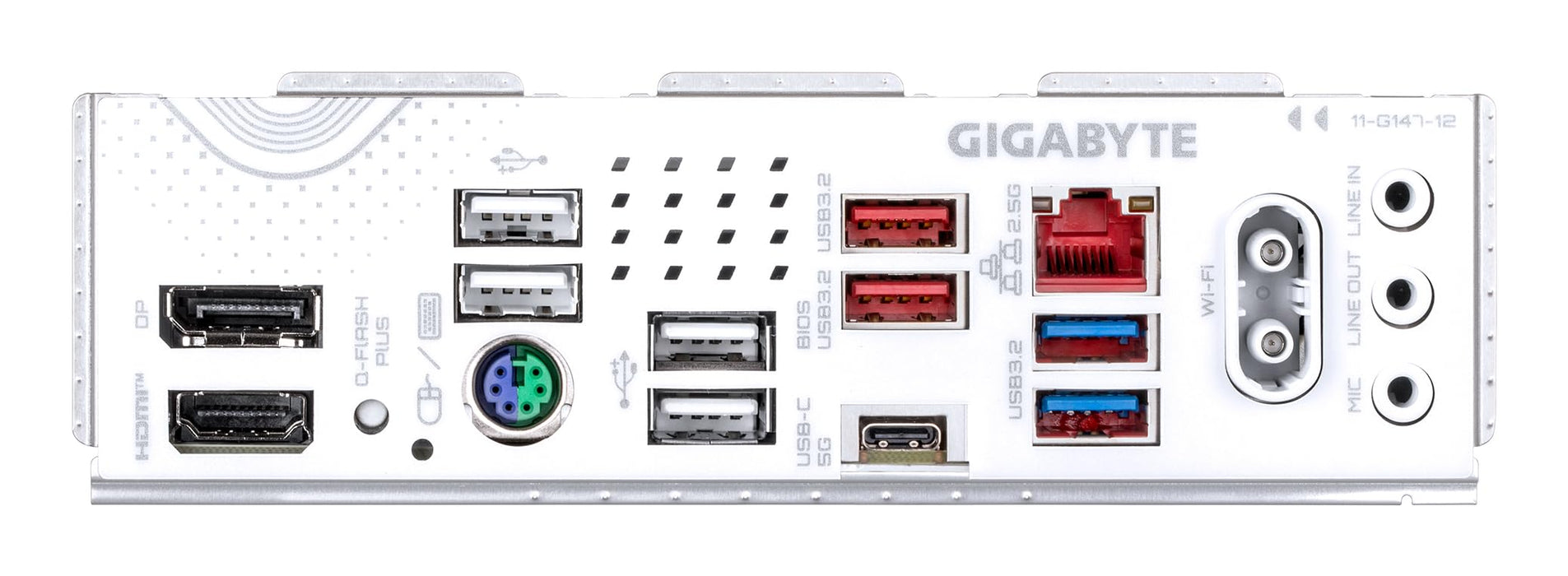

I/O & Connectivity

• Rear USB Ports: 4x USB 2.0, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, and 1x USB 3.2 Gen 1 Type-C.
• Audio: Realtek 7.1-channel HD audio.
• Display Outputs: 1x HDMI 2.1 (up to 4096x2160@60 Hz) and 1x DisplayPort 1.4 (up to 3840x2160@144 Hz) for integrated graphics.
• Additional: PS/2 port, fitted I/O shield, and Q-Flash Plus button for BIOS updates.

Cooling & Build

• Thermal Design: VRM Thermal Armor Advanced and M.2 Thermal Guard for efficient heat dissipation.
• Fan Headers: 2 CPU fan connectors, 4 chassis fan connectors, and 2 water pump connectors.
• Build Features: EZ-Latch Plus for PCIe and M.2 slots, white colour scheme, and included antenna and screws.

Compatibility

• Processor Support: AMD Ryzen 7000, 8000, and 9000 Series CPUs.
• Memory: Non-ECC DDR5 modules up to 256 GB, with speeds from 4800 MHz to 8200 MHz (OC).
• Operating System: Windows 11 64-bit.
